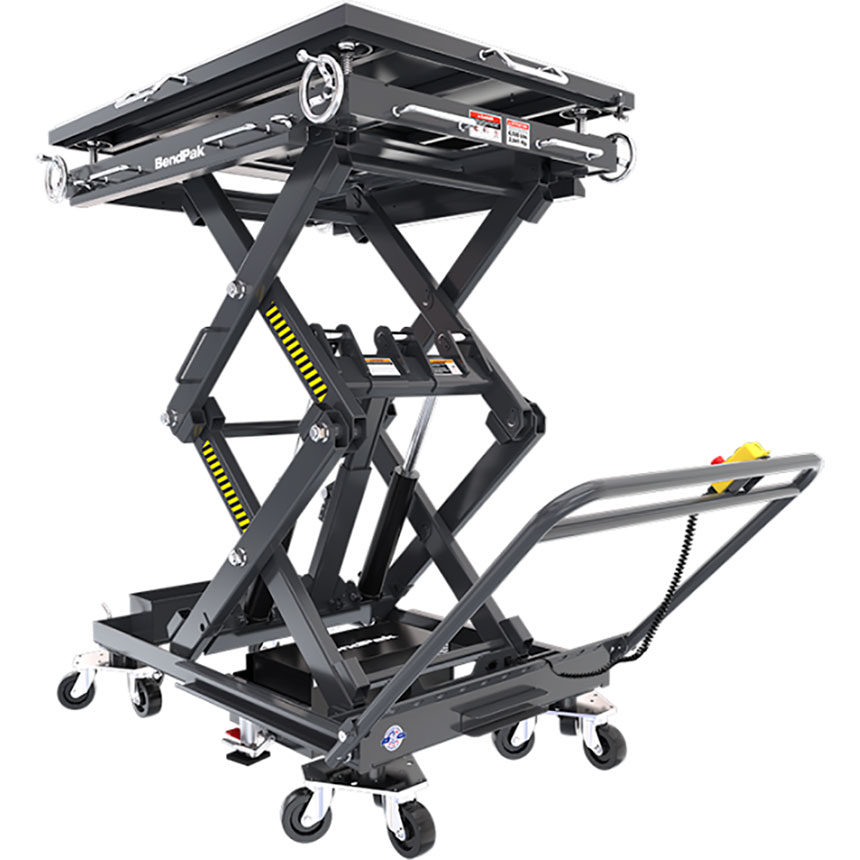

BendPak's revolutionary Mobi-EVS™ line of full-rise battery powered mobile scissor lift tables are perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. The EVS4500 boasts a 4,500-lb. lift capacity and features a compact design which can be easily transported anywhere in the workplace, making them ideal for multi-bay facilities or workplaces with confined areas.
SpecificationsEVS4500- Zero-throw casters for extreme maneuverability
- Stowable Tow Bar
- Twin hydraulic cylinders
- Tri-caster locking pin
- DC Electric power system with onboard charging
- Multi-point safety locks
- Remote control operation
- Full-length utility trays
- Manual floor locks
- Dual scissor design
- 12-Volt deep cycle battery
Maximum Rise: 77.75 in. / 1,972 mm
Overall length: 91.25 in. / 2,318 mm
Top Deck length (with handles): 71.25 in. / 1,807 mm
Top Deck Length: 63 in. / 1,600 mm
Overall Width (with handles): 53 in / 1,348 mm
Top Deck Width: 42.75 in. / 1,088 mm
Screw Jack Max. Adjustment: 1.5 in. / 38 mm
Minimum Deck Height: 34.25 in. / 868 mm
Height of Steering Handle: 39.25 in. / 997 mm
Motor: 12VDC
Operating Pressure at Max Load: 1720 psi
Battery Charger: Input: 120 VAC, 60 Hz. / Output: 12VDC, 15A
Battery Charge Time: 10-12 Hours to full charge from ≈20%
Lifting Time: ≈18 seconds
Weight: 1,918 lbs. / 870 kg
