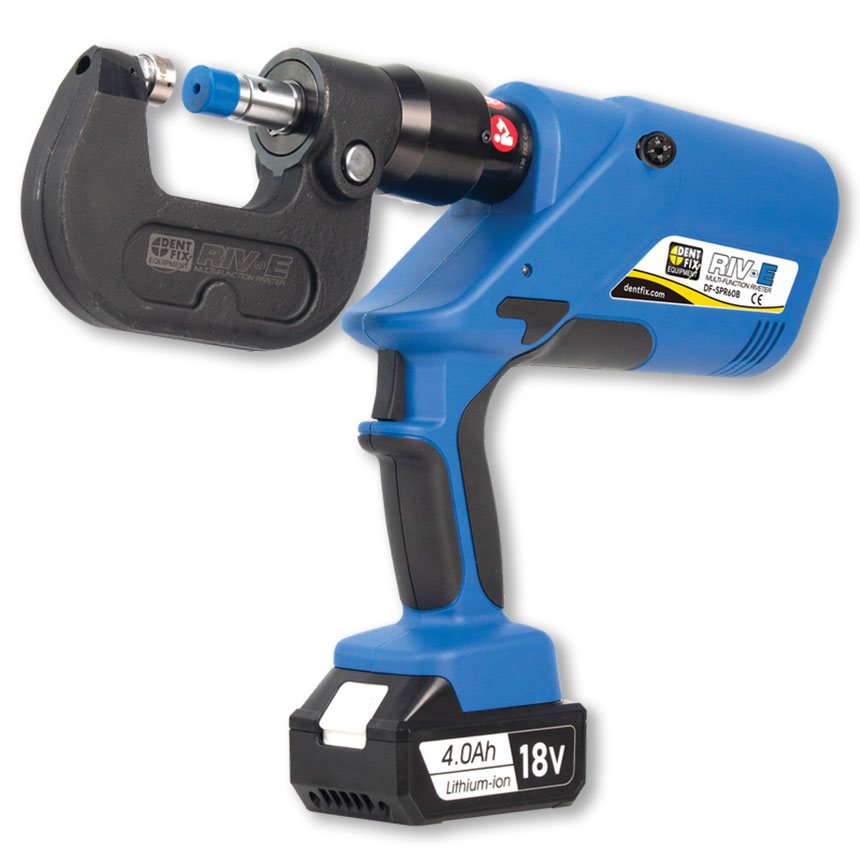

Dent Fix - DF-SPR60B RIV-E - Multi-Function Riveter

The DF-SPR60B RIV-E Multi-Function Riveter is an easy to operate panel replacement tool.

Remove and insert multiple types of rivets to bond automotive panels during the replacement procedure: 3.3mm & 5.3mm Self-Piercing Rivets, Flow Form Rivets, Hole Punching, and Flattening.

Features & Benefits

• Auto Pressure - Hold the trigger and the unit automatically releases pressure when complete.
• SPR Panels - Capable of bonding 0.5 to 9mm thick aluminum panels together.
• Optimal Pressure - Range Set to a minimum of 30KN up to a maximum of 60KN of pressure.
• Dial Control - The rotational dial allows the user to easily set the desired pressure settings.
• Highly repeatable and reliable results eliminate guess work and allow for quicker panel replacement repairs.

Specifications

• MAX PRESSURE: 6 Tons (60 KN)
• MIN PRESSURE: 3 Tons (30 KN)
• WEIGHT: 11 lbs
• WORK PERIOD: 3-5s/time
• WORK STROKE 35-40mm
• SPR DIE SETS: 3.3mm & 5.3mm
• EXTRACTION DIE SET: Yes
• FLOW FORM DIE SET: Yes
• PUNCH DIE SET: Yes
• FLATTENING DIE SET: Yes
• MOTOR VOLTAGE: 18V DC
• BATTERY: DC 18V 4AH, Lithium CHARGER: AC 100V-240V 50-60HRZ
• CHARGE TIME: About 1 Hour
• WORK TIME/FULL CHARGE: 300-400 Times (According to Rivet Type)

Includes:

• Riveter
• Small Arm
• Dies Kit
• Charger
• Battery
• Sling
• Rugged Case with foam inserts
