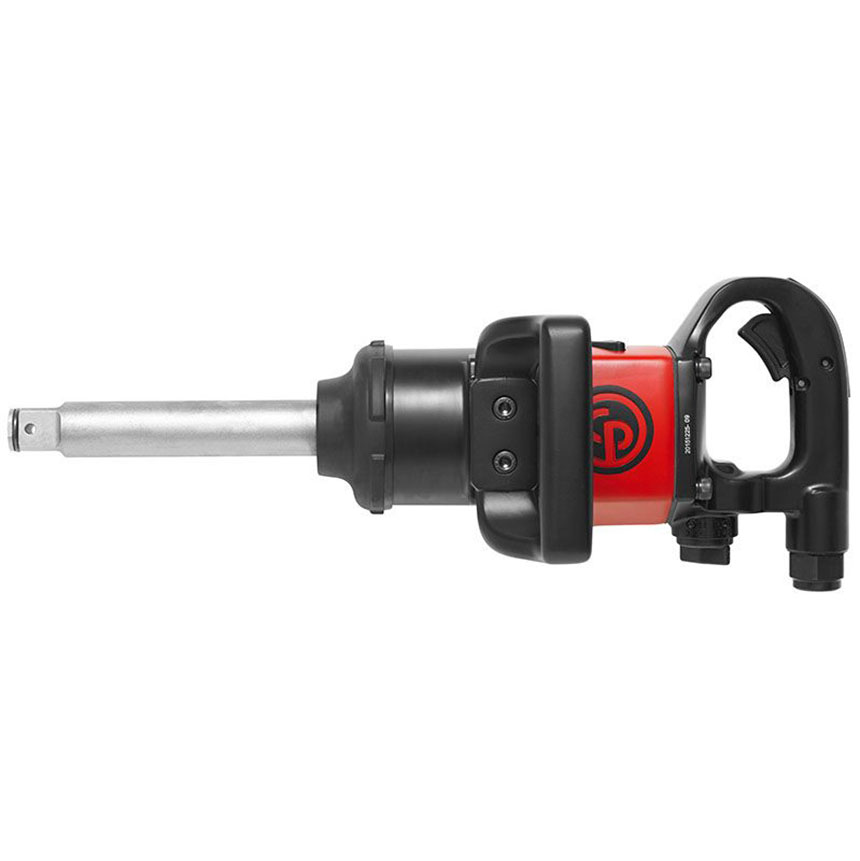

Built for high-demand heavy-duty service environments, the Chicago Pneumatic CP7783-6 combines exceptional torque, durability, and operator comfort in a lightweight 1" impact wrench platform. Producing up to 1,770 ft-lbs. of reverse torque and equipped with a reinforced pin less rocking dog clutch, this impact wrench delivers dependable power for commercial trucks, fleet vehicles, off-road equipment, and industrial maintenance operations. The extended 6" anvil provides easier access to recessed fasteners and dual-wheel assemblies, while the adjustable D-handle and configurable exhaust system maximize control and user comfort throughout the workday.
Feature Highlights
- 1" square drive pneumatic impact wrench
- Extended 6" anvil for deep wheel and dual-wheel applications
- Up to 1,770 ft-lbs. of reverse torque
- Durable pin less reinforced rocking dog impact mechanism
- Lightweight aluminum housing reduces operator fatigue
- Ergonomic D-handle with four-position adjustment for improved comfort
- Adjustable top or bottom exhaust for operator convenience
- Integrated forward/reverse regulator with multiple power settings
- Ideal for truck tire service, fleet maintenance, agriculture, and heavy equipment repair
Specifications:
- Max Torque - Forward - 1250 ft. lbf
- Max Torque - Reverse - 1770 ft. lbf
- Free Speed - 6200 rpm
- Air Consumption at load - 40 cfm
- Air Inlet - 1/2"
- Max Air Pressure - 90 psi
- Min hose diam - .38"
- Material - Aluminum
- Starting System - Trigger
- Weight - 20.9 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- 1" square drive
- Extended 6" anvil
- Up to 1,770 ft-lbs. of reverse torque
- Durable pin less reinforced rocking dog impact mechanism
- Lightweight aluminum housing
- Ergonomic D-handle
- Adjustable top or bottom exhaust
- Integrated forward/reverse regulator
