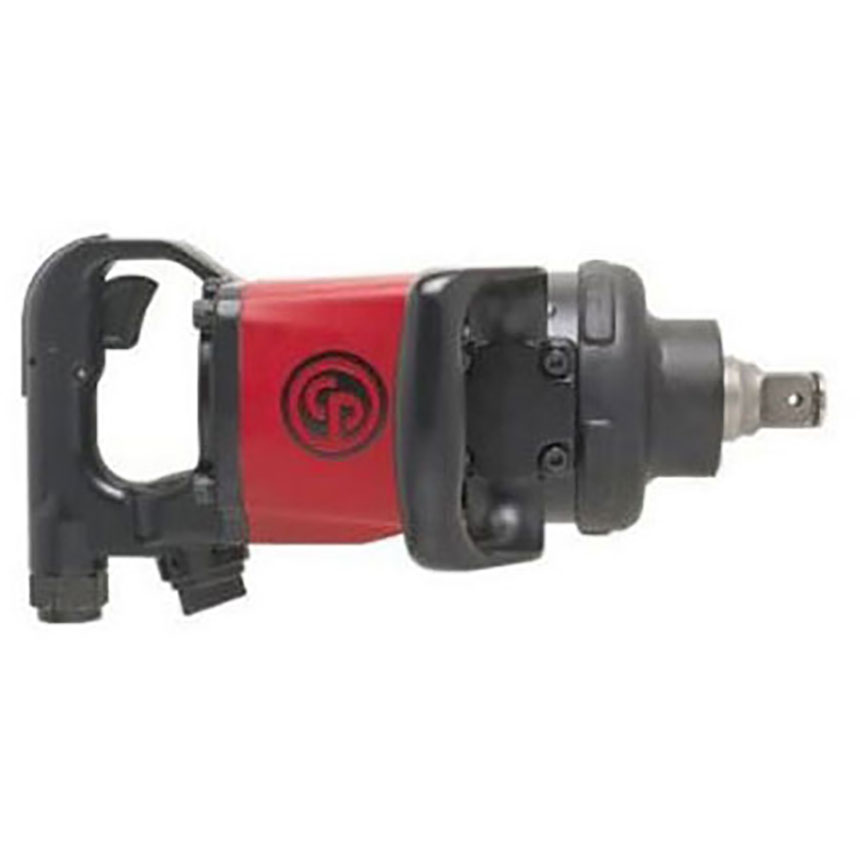

- 1" D-handle impact wrench with dual retainer (Hole + Ring)
- Pinless closed reinforced rocking dog impact mechanism
- ergonomic side handle
- Integrated protective cover on the clutch housing
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both directions
- Choose standard or 6" extended anvil
Specifications
- Anvil: Standard or 6" Extended
- Actual air consumption: 19.2 l/s (40.7 cfm)
- Air inlet thread size: 1/2 "
- Average air consumption: 4.8 l/s (10 cfm)
- Blows per minute: 500
- Bolt size: M32 mm
- European Directives: 2006/42/EC (17/05/2006)
- European Sound standard: ISO 15744
- European Standards: EN ISO 11148-6:2012
- Free speed: 5200 rpm
- Length: 14.7 "
- Maximum Torque (reverse): 2600 Nm (1920 ft-lbs)
- Min. hose size: 1/2 "
- Net weight: 22.2 lb
- Power/weight ratio: 257.4 Nm/kg (86.5 ft-lb/lb)
- Sound Power: 111 db(A)
- Sound pressure: 100 db(A)
- Sound uncertainty: 3 db(A)
- Square drive: 1 "
- Vibration: 7.8 m/s²
- Vibration ISO: ISO-28927-2
- Vibration uncertainty (K): 1.8 m/s²
- Working Torque Range (fwd): 500 - 2000 Nm (370 - 1475 ft.lbs)
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
We've neatly tucked away all of the important information on your new purchase, from assembly instructions to how-to-use videos to warranty information.
Item #
1810226
Brand
Chicago Pneumatic
Manufacturer's Warranty
not available
Shipping Weight
25.5
Product Type
Impact Wrench
Dimensions
0.00" L x 0.00" W x 0.00" H
