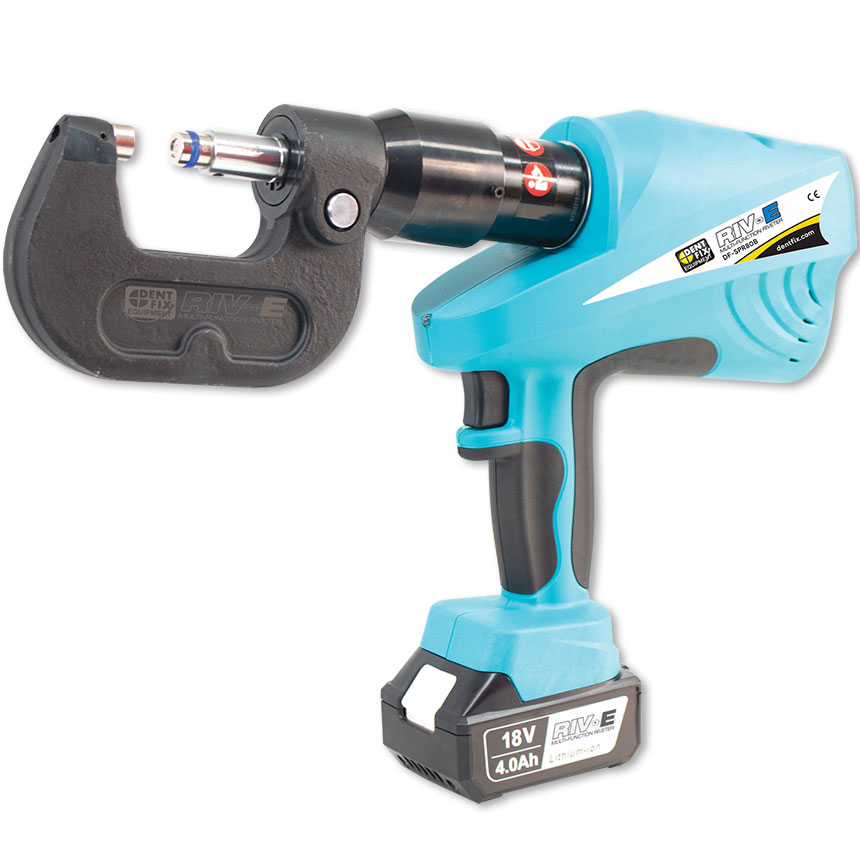

Dent Fix - DF-SPR80B RIV-E 80 - Multi-Function Riveter

At only 11 lbs., the DF-SPR80B RIV-E Multi-Function Riveter is a lightweight and sophisticated computer-controlled, hydraulic- powered machine with a maximum working pressure of 80KN.

Remove and insert multiple types of rivets to bond automotive panels during the replacement procedure: 3.3mm & 5.3mm Self-Piercing Rivets, Flow Form Rivets, Hole Punching, and Flattening.

Features & Benefits

• Precise Pressure - Set the desired pressure and the microcomputer guarantees optimal results.
• SPR Panels - Capable of bonding 0.5 to 9mm thick aluminum panels together.
• High Powered - Equipped with a hydraulic cylinder capable of a maximum of 80KN of pressure.
• Digital Control Center - Easily set the pressure with either the nine available preset settings or choose to manually adjust the pressure to ensure ultimate control and accuracy. The LCD Screen also displays battery level, work times, temperature alarm, and real time pressure.
• Highly repeatable and reliable results eliminate guess work and allow for quicker panel replacement repairs.

Specifications

• MAX PRESSURE: 8 Tons (80 KN)
• WEIGHT: 11 lbs
• WORK PERIOD: 3-5s/time
• WORK STROKE: 40mm
• SPR DIE SETS: 3.3mm & 5.3mm
• EXTRACTION DIE SET: Yes
• FLOW FORM DIE SET: Yes
• PUNCH DIE SET: Yes
• FLATTENING DIE SET: Yes
• MOTOR VOLTAGE: 18V DC
• BATTERY: DC 18V 4AH, Lithium CHARGER: AC 100V-240V 50-60HRZ
• CHARGE TIME: 1 Hour
• WORK TIME/FULL CHARGE: 300-400 Times (According to Rivet Type)
• Warranty: 1 year or 20,000 times cycle, whichever comes first

Includes:

• Riveter
• Die Kit
• Rivet Box
• Charger
• Two 18v batteries
• Rugged custom case with foam inserts
