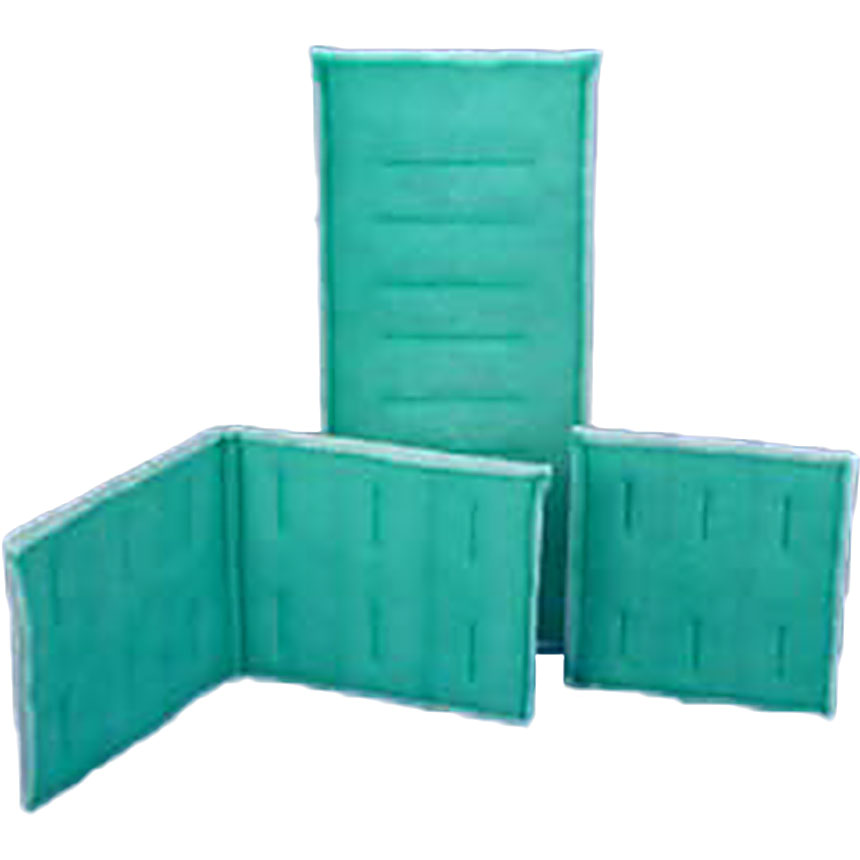

Designed for crossdraft intake air filtration in Paint Spray Booths in the automotive refinishing and industrial finishing markets. The Series 55 panel is Air Flow Technology's economical solution for crossdraft intake applications. Constructed of 100% polyester media impregnated with a downstream applied non-migrating tackifier, the media is heat-sealed to a 9 gauge internal support frame. This sturdy combination results in a filter that eliminates fiber migration or filter media oscillation during operation.
Multi-Layer Design - Series 55 panels and links consist of 2 distinct layers of media combined with a non-migrating tackifier resulting in more than 75% filtration efficiency on particles 10 microns and greater. The depth loading characteristics of the Series 55 media provide quality performance.
Leak-proof Seal - When the panels or links are installed, the media compresses, forming a seal around the perimeter of the filter and preventing the introduction of paint damaging particulate to the spray booth area.
Sturdy Dual Wire Support Construction - Air Flow Technology's internal support frame minimizes filter media vibration and reduces the risk of particle migration downstream.
